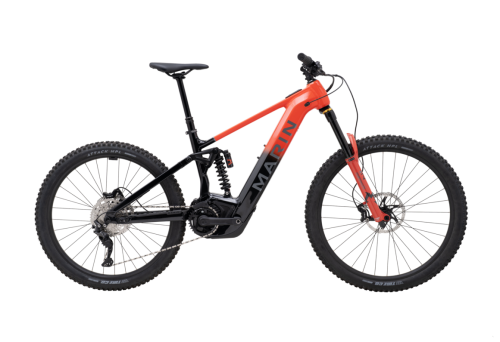

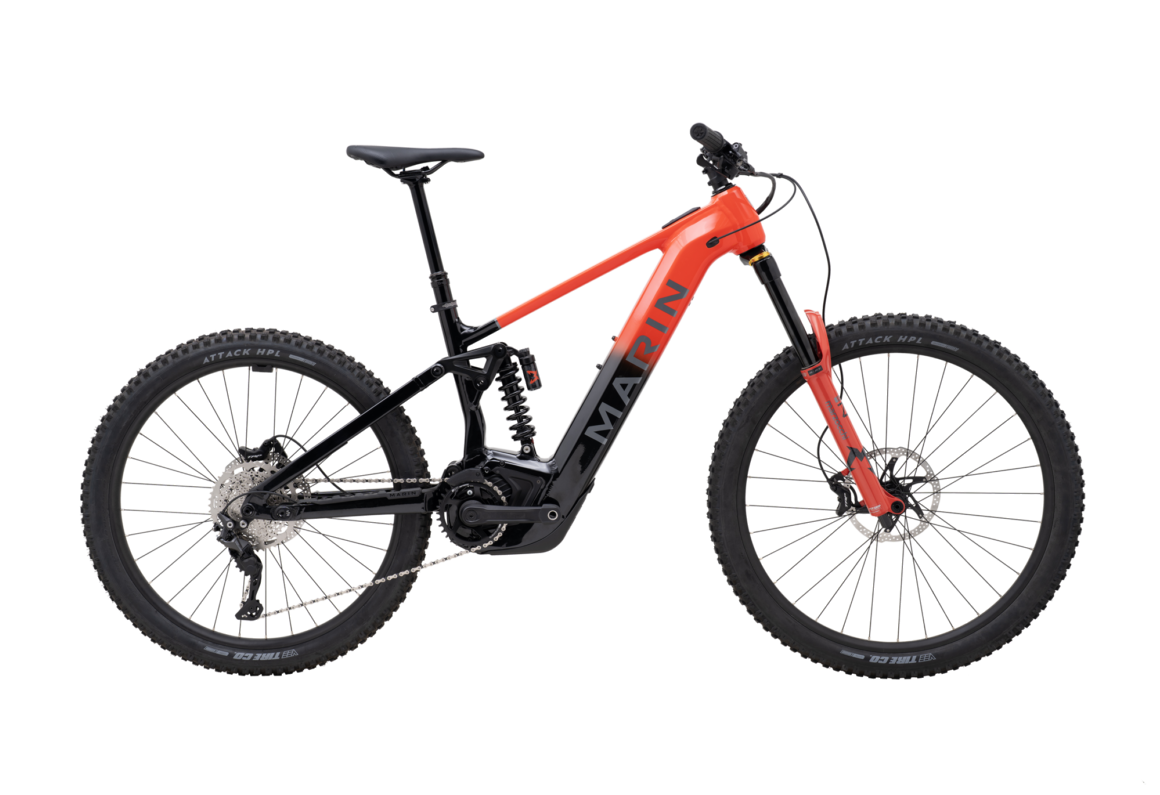

Marin Alpine Trail E1
brak towaru
Cena regularna:
towar niedostępny
dodaj do przechowalni
0
Opis
The Alpine Trail E Bosch is our biggest, baddest beast of a bike family, with 170mm of suspension up front, 160mm of MultiTrac 2 travel at the rear and a Bosch CX drive unit at its core, the Alpine Trail E is constructed for riders who challenge themselves with the steepest, most technical terrain, and maximum range for big days in the mountains.
Our MultiTrac 2 LT suspension design has the pivots located on the chainstays to deliver the suspension performance and tunability demanded on our longer travel bikes. Riders also have the ability to alter the head tube angle by +/- .75° by repositioning the lower headset cup while the bottom bracket height/chainstay length can be changed by the means of seatstay flip chips.
Bosch's Performance Line CX drive units twist out 85Nm of torque and are backed by large capacity 750Wh PowerTube batteries, nestled safely in the frame's downtube, giving you the largest battery in the Marin range for the biggest adventures.
The Alpine Trail E1 Bosch is smartly spec'd with choice Marzocchi suspension with a coil shock out back, Shimano's innovative CUES 10-speed drivetrain and Tektro's Slate EVO 4-piston brakes with 203mm x 2.3mm rotors for when you need to reel in the party.
| Size | Rider height range |
|---|---|
| M | 168 to 178cm |
| L | 178 to 188cm |
| XL | 188 to 193cm |
Specyfikacja
App
Bosch eBike Flow App
Range
31-78 miles/50-125km
Display
Bosch BRC3100 Systems Controller
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Battery
Bosch PowerTube 750Wh
Motor
Bosch Performance CX, 600W, 85Nm
Frame
All New Series 4 Alloy, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset
Rear Suspension
Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30xM8 Lower Hardware, Custom Tune, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb
Rim
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear
Shimano FHTC500, 148x12 Thru Axle, Mircospline, 32H, Centerlock
Hub Front
Shimano Front Hub, 110x10 Thru Axle, 32H, Centerlock
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"
Derailleur Rear
Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever
Shimano CUES SL-U6000-10R, 10-Speed
Crankset
e*thirteen e*spec Plus, 160mm Length
Chain
Shimano LG500
Cassette
Shimano CS-LG300-10, 11-48T
Brakes Front
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brakes Rear
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brake Levers
TRP Slate EVO, I-Spec EV Compatible
Handlebar
Marin Mini Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle
Marin Speed Concept
