Marin Alpine Trail E2
brak towaru
Cena regularna:
towar niedostępny
dodaj do przechowalni
0
Opis

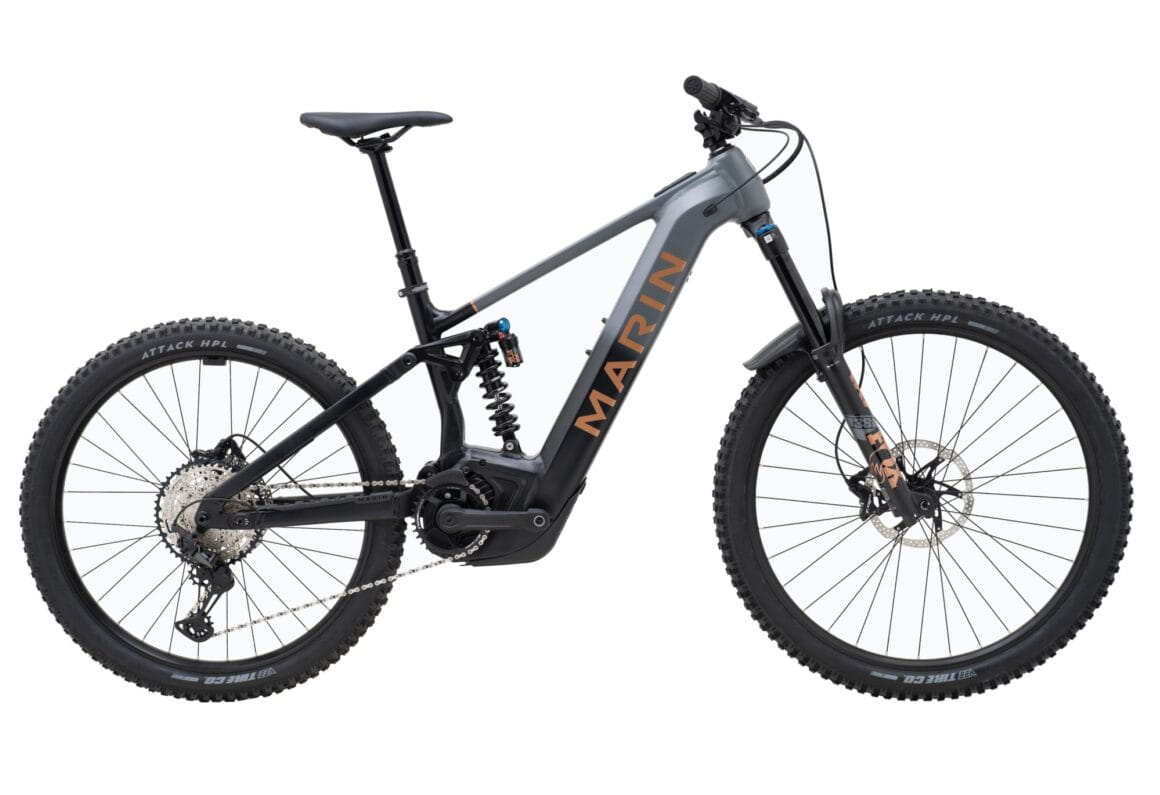

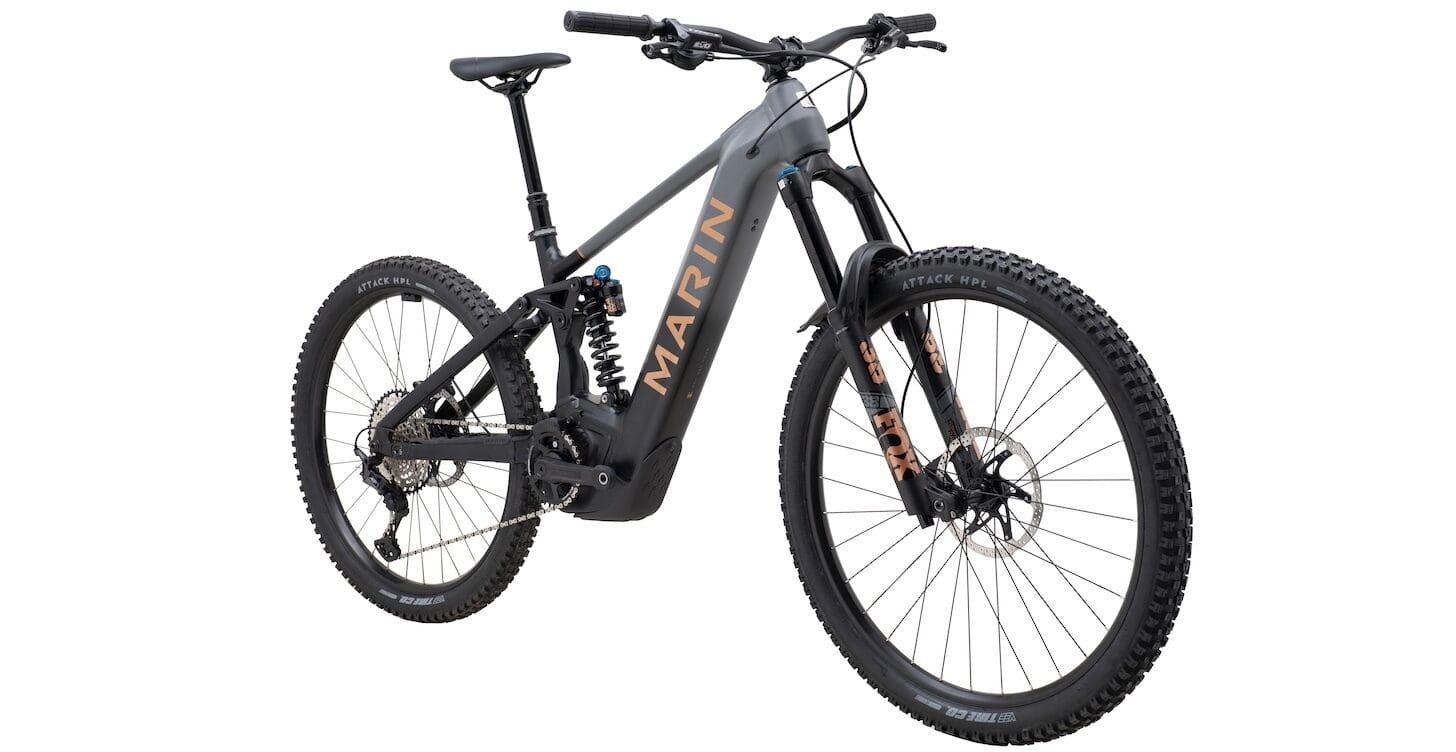

The Alpine Trail E Bosch is our biggest, baddest beast of a bike family, with 170mm of suspension up front, 160mm of MultiTrac 2 travel at the rear and a Bosch CX drive unit at its core, the Alpine Trail E is constructed for riders who challenge themselves with the steepest, most technical terrain, and maximum range for big days in the mountains.
Our MultiTrac 2 LT suspension design has the pivots located on the chainstays to deliver the suspension performance and tunability demanded on our longer travel bikes. Riders also have the ability to alter the head tube angle by +/- .75° by repositioning the lower headset cup while the bottom bracket height/chainstay length can be changed by the means of seatstay flip chips.
Bosch's Performance Line CX drive units twist out 85Nm of torque and are backed by large capacity 750Wh PowerTube batteries, nestled safely in the frame's downtube, giving you the largest battery in the Marin range for the biggest adventures.
The Alpine Trail E2 Bosch lights the wick with a premium Fox suspension pairing and Shimano's XT 12-speed drivetrain, powerful TRP DHR EVO brakes along with our own proprietary CNC 35mm stem and Trail Bar combo.
| Size | Rider height range |
|---|---|
| M | 168 to 178cm |
| L | 178 to 188cm |
| XL | 188 to 193cm |
Specyfikacja
App
Bosch eBike Flow App
Range
31-78 miles/50-125km
Display
Bosch BRC3100 Systems Controller
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Battery
Bosch PowerTube 750Wh
Motor
Bosch Performance CX, 600W, 85Nm
Frame
All New Series 4 Alloy, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
Fox 38 Performance Elite, 170mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
Rear Suspension
Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 30mmxM8 Lower Mount, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb
Rim
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear
Shimano FHTC500, 148x12 Thru Axle, Mircospline, 32H, Centerlock
Hub Front
Shimano Front Hub, 110x10 Thru Axle, 32H, Centerlock
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"
Derailleur Rear
Shimano XT 12-Speed, SGS
Shift Lever
Shimano SLX 12-Speed, I-Spec EV
Crankset
e*thirteen e*spec Plus Cranks, 160mm Length
Bottom Bracket
Bosch Performance CX, 600W, 85Nm
Chain
KMC E12S, E-Bike Specific
Cassette
Shimano SLX M7100 Cassette, 12-Speed, 10-51T
Brakes Front
TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm 2.3mm Thick Rotor
Brakes Rear
TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm 2.3mm Thick Rotor
Brake Levers
TRP DH-R EVO
Handlebar
Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle
Marin Speed Concept
